CS/A Ultra-Bus

This is a new backplane for CS/A, that also allows using Apple-II and RC2014 boards as extensions.

Please note that actual development is tracked on the github page linked below

  •
    2024-09-21 Please track version 2.0 and later on the ultrabus github page.
  •
    2023-12-13 Initial publish on this page

Version: 2.0A

Status: ok

Notes


Please track this and later revisions on the ultrabus github page.

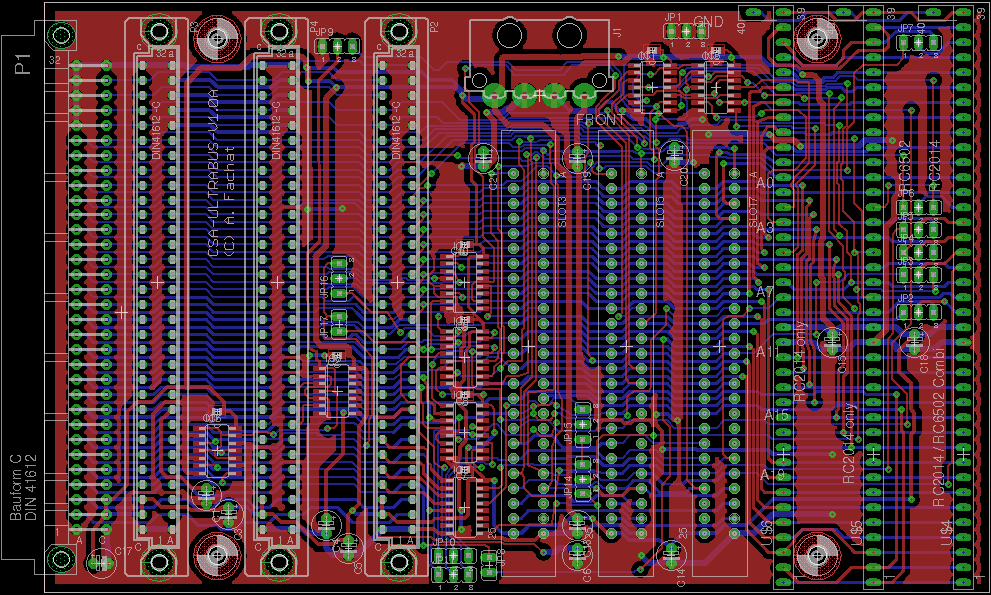

This board works for CS/A cards. Apple II cards (as far as they are supported) should work, this has been tested with a super serial card.

Version: 1.0A

Status: ok

Notes


This board works for CS/A cards. Apple II cards (as far as they are supported) should work, this has been tested with a super serial card.

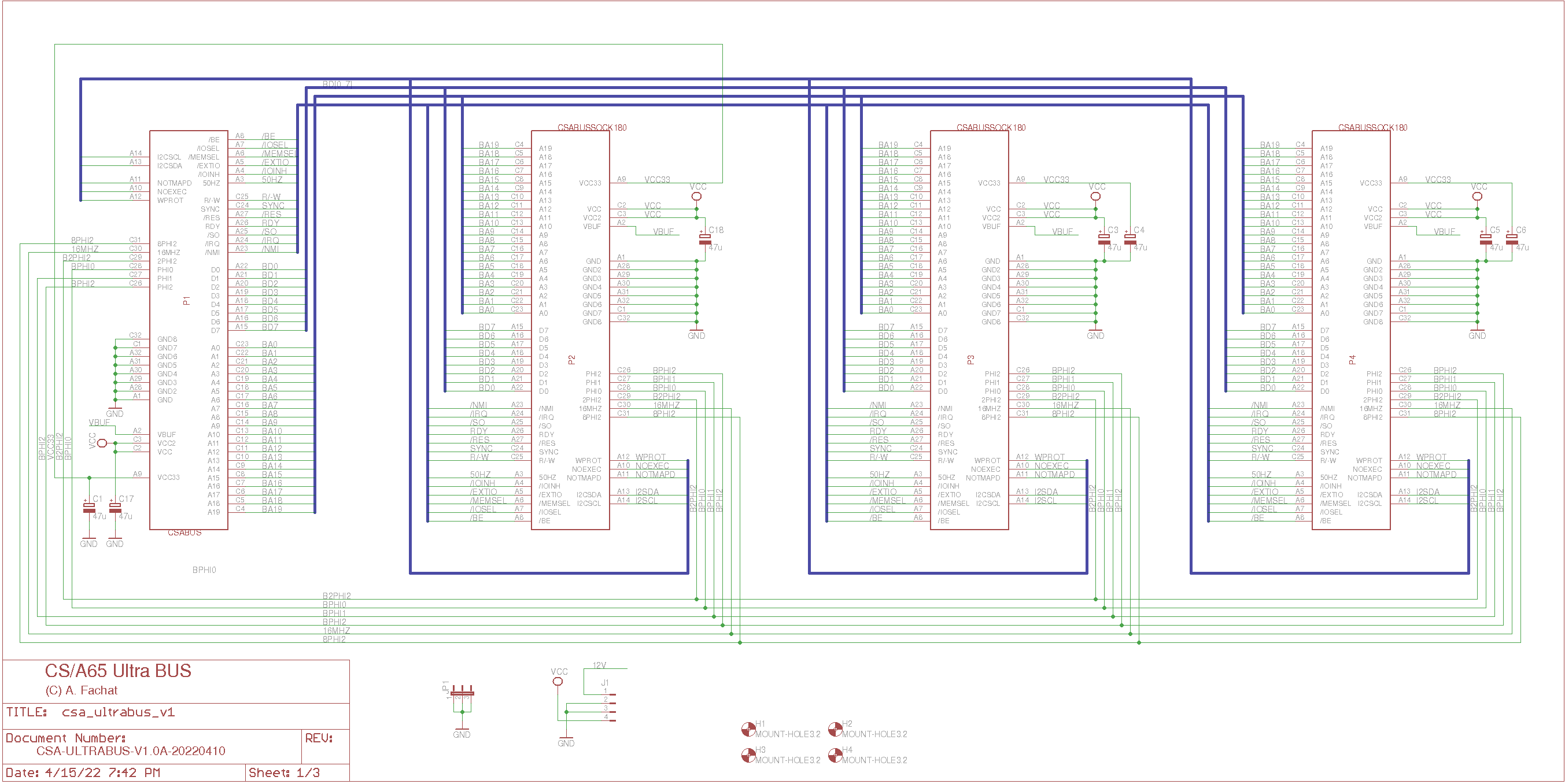

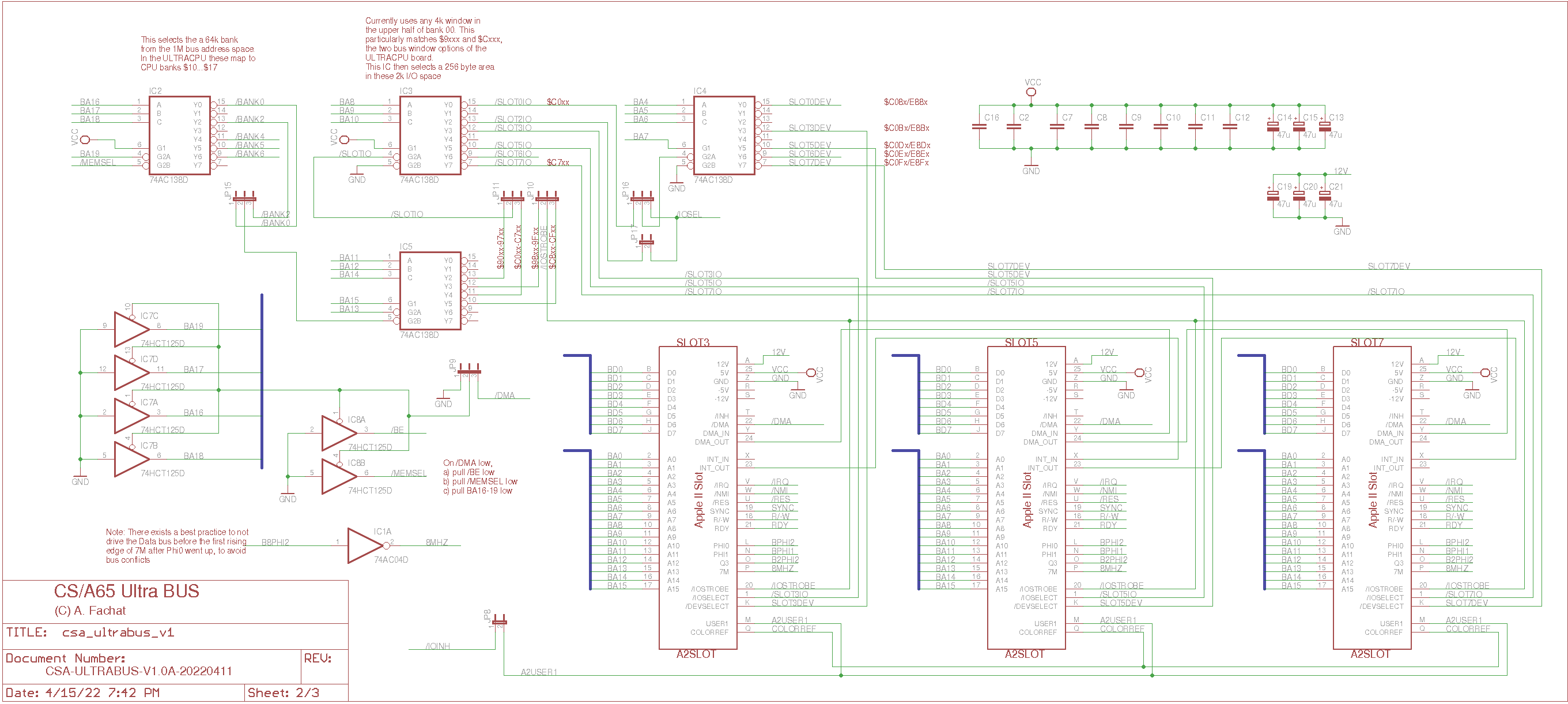

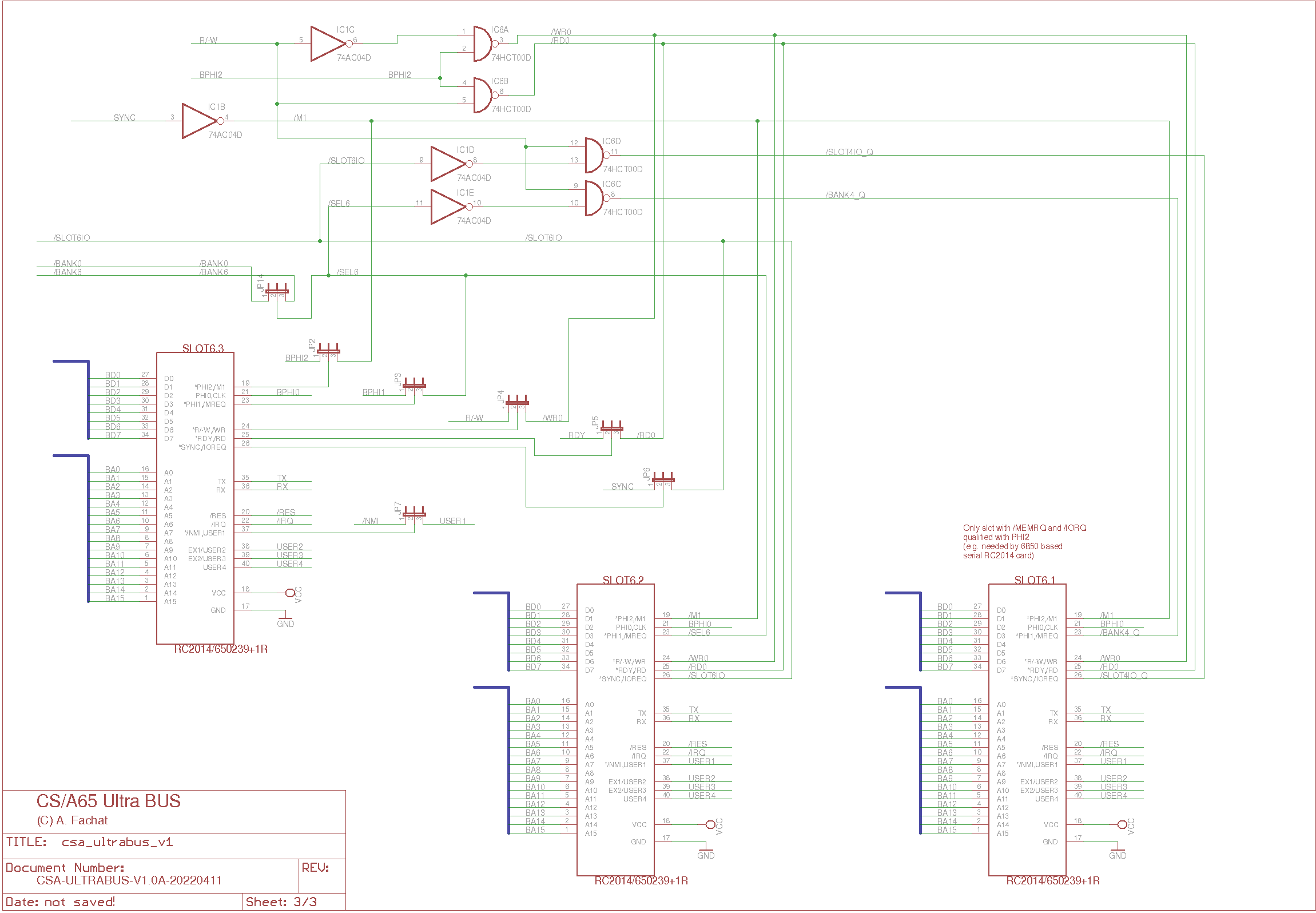

RC2014 also works but mostly in Slot 6.1 with /MREQ and /IOREQ qualified with Phi2. It seems more RC2014 than anticipated need this. The next revision will have all slots with qualified /MREQ and /IOREQ.
