CS/A65 PC floppy interface

This board implements a shugart bus interface as used in the standard PC floppy disk drives (5.25" and 3.5").
  •
    2006-11-01 Added driver code.

PETCPU test

This file includes a small test program that does a "readaddress" command on the WDC and either prints the sector header (in reverse) or the WDC status register in case of an error.

This driver runs on a PETCPU with the Commodore PET ROMs (just 'dL"test1"' :-) and expects the card I/O at $E8C0 (WD177x) and $E8D0 (VIA).

OS/A65 shugart bus floppy driver

This driver handles the WD1770/1772 shugart bus floppy device. It is included in the fsibm filesystem code and provides the interface the filesystem expects.
  • DINIT - initialize the device
  • DFORMAT - format a floppy
  • GETDPB - get the disk parameter block that describes the disk format
  • RWSEC - read or write a sector
  • DLOOP - loop to check disk changed, or to switch motor on or off
The driver calls the method dchanged to signal that a disk has been changed.

drv_wd1770.a65(floppy driver)

wd1770.i65(wd1770 register definitions)

Version: 1.2A

Status: ok

Notes

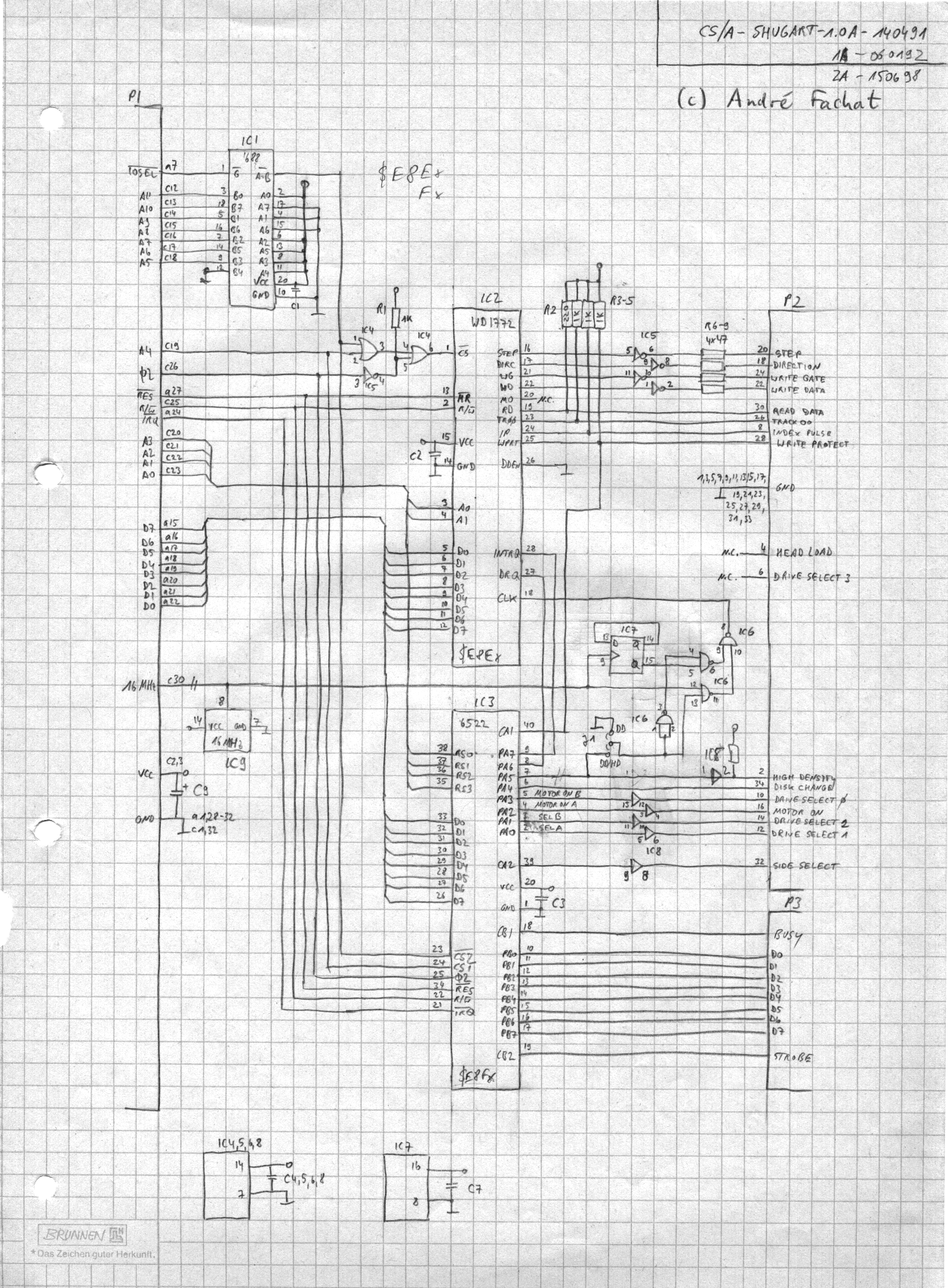

This board implements a (shugart-type i.e PC-type) floppy disk controller. The board has been tested with 5.25" and 3.5" PC disk drives.

I can't reconstruct what mandated the move to a 1.2 revision. The only difference I can currently see is the jumper to select if DD/HD is soft-switchable or not. What can also be seen is that the hand- and computer-drawn schematics were not always fully in sync (see the revision marks and the respective dates...)

Using this board with HD-drives (i.e. 1.44M 3.5" floppies overclocks the WDC1772 chip used in this board, as it is only specified for DD-disks (720k).

Version: 1.0B

Status: ok

Notes


This board implements a (shugart-type i.e PC-type) floppy disk controller. The board has been tested with 5.25" and 3.5" PC disk drives.

Using this board with HD-drives (i.e. 1.44M 3.5" floppies overclocks the WDC1772 chip used in this board, as it is only specified for DD-disks (720k).

Last modified: 2006-11-01.
