Torch Z80 second processor. By Lee Davison. |
This is a second processor board for the BBC Micro. Apart form the board itself I have no information on this board. While there seems to be information available for the Acorn Z80 board any data on this board seems to be lacking. I would like at least to get the circuit diagram for it. So, if you have further information, or know where such can be found please e-mail me .
Just for now there are a couple of larger images and a dump of the 2764 8k EPROM.

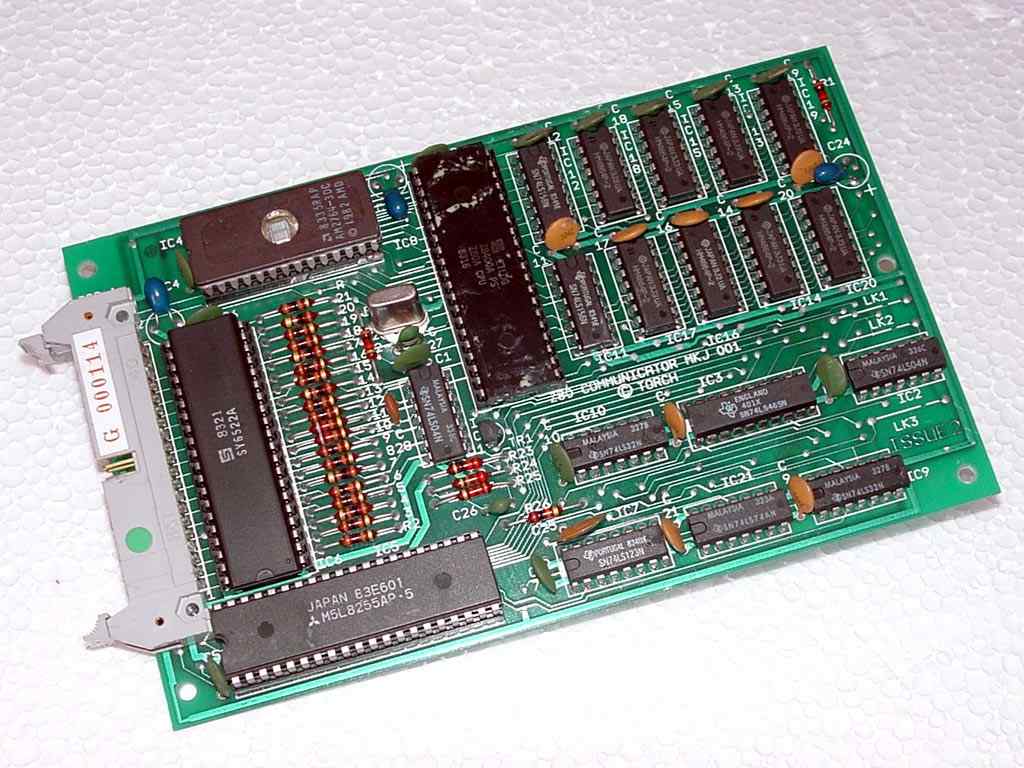

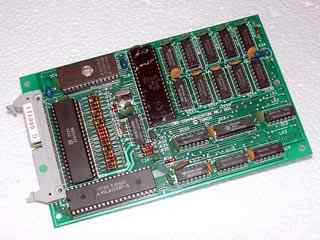

A 640 x 480 jpeg image. A 1024 x 768 jpeg image. I seem to have two versions of the EPROM so both are available.
Download the EPROM 0.94 as an Intel hex file. Download the EPROM 0.94 as a binary dump.
Download the EPROM 1.02 as an Intel hex file. Download the EPROM 1.02 as a binary dump.
